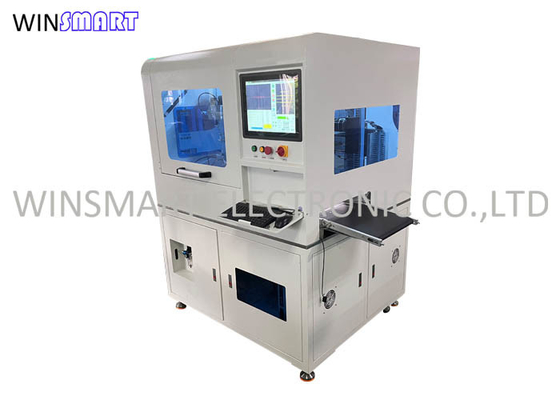

Rigid FR4 Aluminum PCBA Cutting System Universal PCB Depaneling Machine
PCB Depaneling Machine Function:
This PCB depaneling machine is workable for both FR4 and Aluminum PCBA connected by V-cut and milling bridge.
It has 2 different type of spindles for both V-groove and milling joints cutting.
PCB Depaneling Machine Advantange:
1. Low cutting stress for both V-cut and tab PCBA depaneling.
2. PC and CCD vision system for precise programming and operation.
3. Easy programming.
4. Top dust collection system for dust free workshop.
5. High production capacity for high volum products.
PCB Depaneling Machine Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
5. Less than 500ustrain cutting stress to protect components from damage during cutting.
6. Optional QR code and barcode tracking system.
7. Friendly software, easy to operate and program
PCB Depaneling Machine Cutting Structure:
1. The servo motor is matched with a precise screw driven to ensure cutting speed and precision.
2. The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
3. Two spindle works separately, suitable for all FR4 and Aluminum PCBA depaneling.
PCB Depaneling Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
|
| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Rigid FR4 Aluminum PCBA Cutting System Universal PCB Depaneling Machine
PCB Depaneling Machine Function:
This PCB depaneling machine is workable for both FR4 and Aluminum PCBA connected by V-cut and milling bridge.
It has 2 different type of spindles for both V-groove and milling joints cutting.
PCB Depaneling Machine Advantange:
1. Low cutting stress for both V-cut and tab PCBA depaneling.
2. PC and CCD vision system for precise programming and operation.
3. Easy programming.
4. Top dust collection system for dust free workshop.
5. High production capacity for high volum products.
PCB Depaneling Machine Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
5. Less than 500ustrain cutting stress to protect components from damage during cutting.
6. Optional QR code and barcode tracking system.
7. Friendly software, easy to operate and program
PCB Depaneling Machine Cutting Structure:
1. The servo motor is matched with a precise screw driven to ensure cutting speed and precision.
2. The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
3. Two spindle works separately, suitable for all FR4 and Aluminum PCBA depaneling.
PCB Depaneling Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
