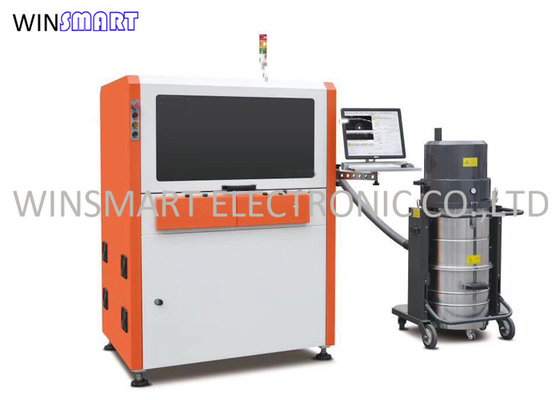

Inline Milling Cutter PCB Depaneling Router Machine For Rigid PCB Boards
Inline PCB Depaneling Router Description:
This is a full automatic PCB depaneling machine, which uses high speed spindle with loader and unloader for ATE test line, low cutting stress to protect components well and ensure precision and cleanliness.
Inline PCB Depaneling Router Features:
It is full automatic for high volume production, and has PC and CCD vision system for precise cutting. Online programming with compensation and bottom dust collection. Bottom cutting design making PCB surface and workshop clean. Its compact body saving production space, and it is flexible for different type of boards, customized made is available to meet different client's requirements.
Inline PCB Depaneling Router Specification:
| Model Number | SMTIR811 |
| Machine Size | 1500(L)x850(W)x1600(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 260x340mm (standard) |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left -> Right |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Manual |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Automatic Tool Change | Optional |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Dia, right rotation |
| Repeat Accuracy | ±0.02mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Waste Collection Way | Waste Cupboard Collection |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm2 |
| Power Supply | AC380V, 50/60Hz, 3KW |
Inline PCB Depaneling Router Dimension:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTIR811 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Inline Milling Cutter PCB Depaneling Router Machine For Rigid PCB Boards
Inline PCB Depaneling Router Description:
This is a full automatic PCB depaneling machine, which uses high speed spindle with loader and unloader for ATE test line, low cutting stress to protect components well and ensure precision and cleanliness.
Inline PCB Depaneling Router Features:
It is full automatic for high volume production, and has PC and CCD vision system for precise cutting. Online programming with compensation and bottom dust collection. Bottom cutting design making PCB surface and workshop clean. Its compact body saving production space, and it is flexible for different type of boards, customized made is available to meet different client's requirements.
Inline PCB Depaneling Router Specification:
| Model Number | SMTIR811 |
| Machine Size | 1500(L)x850(W)x1600(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 260x340mm (standard) |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left -> Right |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Manual |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Automatic Tool Change | Optional |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Dia, right rotation |
| Repeat Accuracy | ±0.02mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Waste Collection Way | Waste Cupboard Collection |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm2 |
| Power Supply | AC380V, 50/60Hz, 3KW |
Inline PCB Depaneling Router Dimension:
