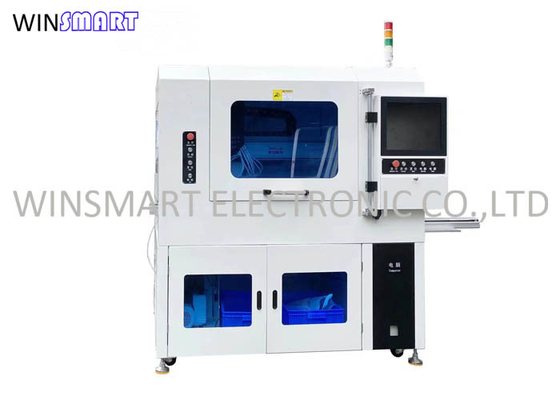

Multi-function PCB Separator Machine PCB Cutter Machine Max 100mm/s Cutting Speed
PCB Cutter Machine Description:
This PCB cutter has 2 different spindles, one with milling cutter for tab PCB cutting, the other with saw blade for V-cut PCB cutting. It has adjustable feeding conveyor and ESD flat belt loading conveyor to realize automation.
PCB Cutter Machine Features:
1. Connect PCB loader and unloader for full automatic production, improving capacity for high volume boards.
2. PC and CCD vision system, automatic positioning function by scanning mark points.
3. This machine comes with top vacuum cleaning system to ensure noise free and dust free.
4. Very low cutting stress it caused, ensure that there is no damage for components mounted on the board.
PCB Cutter Machine Cutting Structure:
1. The servo motor is matched with a precise screw driven to ensure cutting speed and precision.
2. The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
3. Two spindle works separately, suitable for all FR4 and Aluminum PCBA depaneling.
PCB Cutter Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
PCB Cutter Machine Mechanical Collection:
The X axis is driven by belt and stepper motor, which has fast response speed, high precision and low maintenance cost.
Equipped with double mainipulators and multifunctional vacuum nozzle, convenient, efficient, flexible and improve production time when product is changed.
|
|
