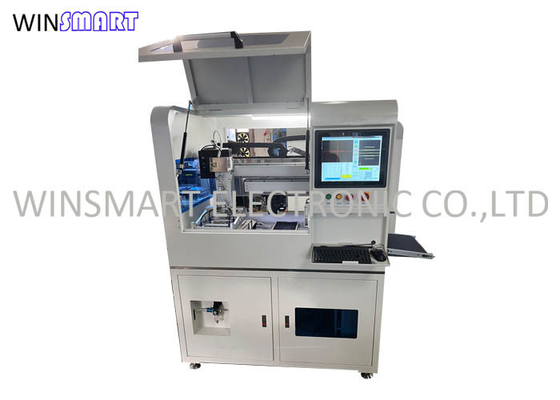

Saw Blade And Milling Cutter Printed Circuit Board Router PCB Depanelization
PCB Depaneling Machine Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
5. Less than 500ustrain cutting stress to protect components from damage during cutting, easy programming and operation.
6. Win 10 operation system.

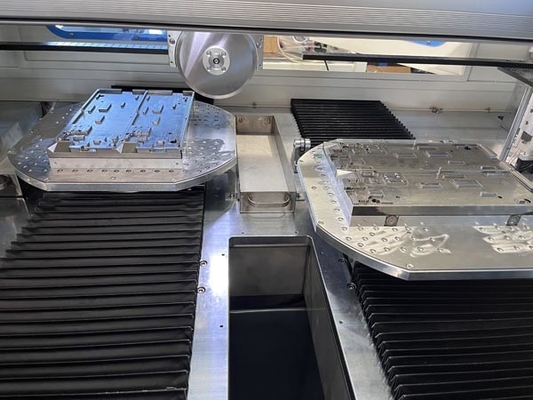

PCB Depaneling Machine Cutting Structure:
The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
Two spindle works separately, workable for all v-cut and tab FR4 and Aluminum PCBA depaneling.
PCB Depaneling Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Saw Blade And Milling Cutter Printed Circuit Board Router PCB Depanelization
PCB Depaneling Machine Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
5. Less than 500ustrain cutting stress to protect components from damage during cutting, easy programming and operation.
6. Win 10 operation system.
PCB Depaneling Machine Cutting Structure:
The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
Two spindle works separately, workable for all v-cut and tab FR4 and Aluminum PCBA depaneling.
PCB Depaneling Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
