| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

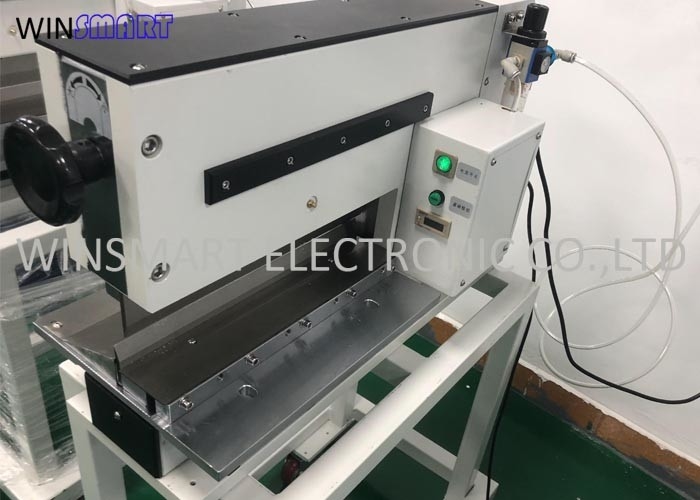

Foot Switch Control 200u Strain PCB Separator Machine Guillotine PCB Cutter
Guillotine PCB Cutter Features:
The machine is driven by air, it has lowest stress without bending and tension to protect PCB from damage during cutting.
And it is controlled by footpedal, adjustable cutting speed.
It uses 2 linear blades to separate and allows 0.5mm components as close as scoring line, and operator will not misfeed the boards.
Operator is unable to insert fingers into blades, due to max 2mm blade clearance for safety operation.
Guillotine PCB Cutter Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
Guillotine PCB Cutter Options:
1. Customized blades are available for special application.
2. Safety enclosure custom designed.
3. Optional tray design to safety catch boards after cutting.
Guillotine PCB Cutter Parameters:
|
| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Foot Switch Control 200u Strain PCB Separator Machine Guillotine PCB Cutter
Guillotine PCB Cutter Features:
The machine is driven by air, it has lowest stress without bending and tension to protect PCB from damage during cutting.
And it is controlled by footpedal, adjustable cutting speed.
It uses 2 linear blades to separate and allows 0.5mm components as close as scoring line, and operator will not misfeed the boards.
Operator is unable to insert fingers into blades, due to max 2mm blade clearance for safety operation.
Guillotine PCB Cutter Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
Guillotine PCB Cutter Options:
1. Customized blades are available for special application.
2. Safety enclosure custom designed.
3. Optional tray design to safety catch boards after cutting.
Guillotine PCB Cutter Parameters:
