| Brand Name: | Winsmart |
| Model Number: | SMTS22 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

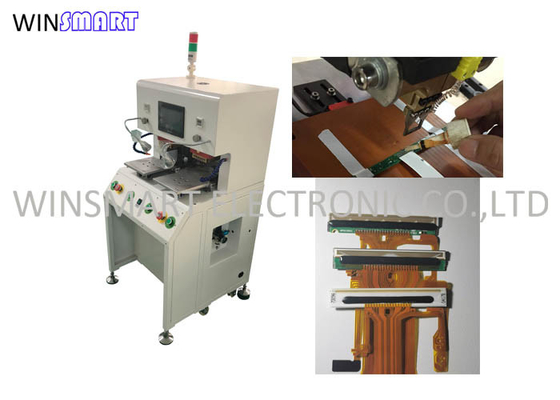

Separated Control Dual Thermode Dual Fixture Hot Bar Soldering Machine
Hot Bar Soldering Machine Selection:
Pay attento to the parameters when selecting a hot bar soldering machine, so as to ensure that it can work well, such as USB cable welding, as well as welding between flexible circuit board and circuit board and so on.
1. When choosing a hot bar soldering machine, you must find a professional factory to buy it, so that its quality can be well guaranteed. Fusen gurantees high quality and stable machines which provide great help in future maintenance.
2. Choose the type of hot bar soldering, pay attention to its temperature conditioning scale, also can be well applied to the temperature of welding products, the best choice is the temperature to be numerical control, high precision.
3. Generally, when selecting the botbar, vacuum function should be selected, which can be well adjusted and welded to make the operation easier.
4. We should also have a digital press, so that when it comes to welding operation, we can determine its pressure scale.
Hot Bar Soldering Machine Features:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Hot Bar Soldering Machine Specification:
| Machine size | 660×620×1260mm |
| Working area | Max 150*150mm |
| Machine weight | 120Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Hot Bar Soldering Machine Applications:
1. FPC to PCB
2. FFC to PCB
3. TAB to PCB
4. Wires to PCB
|
|
