| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

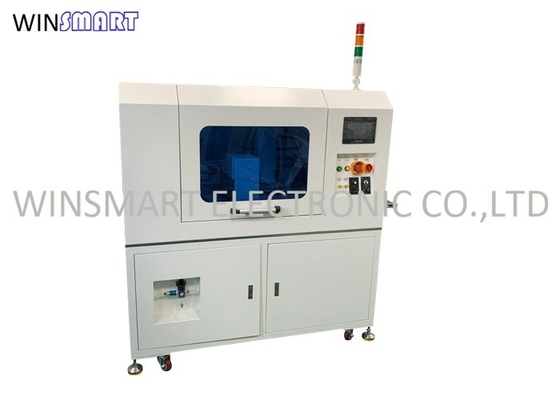

Universal Automatic PCB Depaneling Machine with 2 Spindles for Both V-cut and Tab Boards
Universal PCB Depaneling Machine Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
5. Less than 500ustrain cutting stress to protect components from damage during cutting.
6. Optional QR code and barcode tracking system.
7. Friendly software, easy to operate and program
Universal PCB Depaneling Machine Feeding Mode:
1. Anti-static driven mode, SMEMA interface which is able to
2. Connect front SMT equipment.
3. Adjustable conveyor for different width PCBA, range is 50-350mm.
4. Use independent modular design, convenient and easy to install.
Universal PCB Depaneling Machine Cutting Structure:
1. The servo motor is matched with a precise screw driven to ensure cutting speed and precision.
2. The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
3. Two spindle works separately, suitable for all FR4 and Aluminum PCBA depaneling.
Universal PCB Depaneling Machine Mechanical Collection:
1. The X axis is driven by belt and stepper motor, which has fast response speed, high precision and low maintenance cost.
2. Adopts independent operation mode of double manipulators, which is efficient and flexible. Fast production changing time for SMT line.
3. Equipped with multifunctional vacuum nozzle, convenient and improve production time.
Universal PCB Depaneling Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Universal Automatic PCB Depaneling Machine with 2 Spindles for Both V-cut and Tab Boards
Universal PCB Depaneling Machine Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
5. Less than 500ustrain cutting stress to protect components from damage during cutting.
6. Optional QR code and barcode tracking system.
7. Friendly software, easy to operate and program
Universal PCB Depaneling Machine Feeding Mode:
1. Anti-static driven mode, SMEMA interface which is able to
2. Connect front SMT equipment.
3. Adjustable conveyor for different width PCBA, range is 50-350mm.
4. Use independent modular design, convenient and easy to install.
Universal PCB Depaneling Machine Cutting Structure:
1. The servo motor is matched with a precise screw driven to ensure cutting speed and precision.
2. The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
3. Two spindle works separately, suitable for all FR4 and Aluminum PCBA depaneling.
Universal PCB Depaneling Machine Mechanical Collection:
1. The X axis is driven by belt and stepper motor, which has fast response speed, high precision and low maintenance cost.
2. Adopts independent operation mode of double manipulators, which is efficient and flexible. Fast production changing time for SMT line.
3. Equipped with multifunctional vacuum nozzle, convenient and improve production time.
Universal PCB Depaneling Machine Specification:
| Model Number | SMTID3 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz, 2.5KW |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4025HY |
