| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

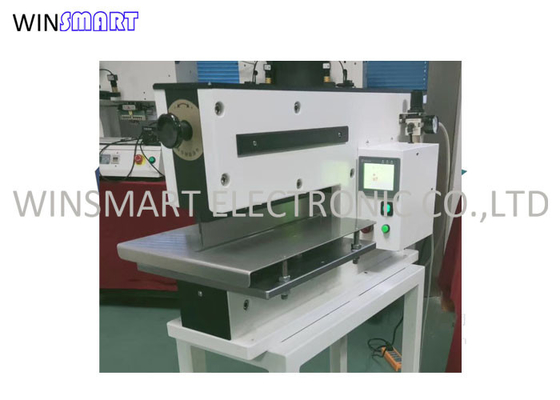

330mm Linear Cutting Blades PCB Depanel Without Cutting Stress
PCB Depanel Description:
It is air drien with 2 linear blades design, working similar to a scissor to low the cutting stress, so that the components won't be damaged during depaneling. It is available for all v-scoring panels depaneling.
PCB Depanel Features:
1. The machine is driven by air, it has lowest stress without bending and tension to protect PCB from damage during cutting.
2. Footpedal control, adjustable cutting speed.
3. Max 2mm blade clearance to avoid accident, operator is unable to insert fingers into it.
4. Blades are customizeable for panels with close components mounted.
5. Blades can be re-sharpened for 2-3 times.
6. Cylinder driven to make workshop clean and environmental.
PCB Depanel Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
PCB Depanel Parameters:
PCB Depanel Maintaining:
Clean the machine after your work is done, spray ant-rust oil onto blades before longtime storing.
|
