| Brand Name: | Winsmart |
| Model Number: | SMTAD10 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

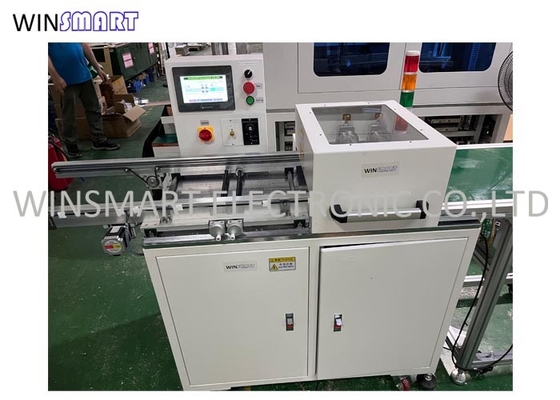

Multi-slicer PCB Separator Machine 2-20 Blade Sets PCB Depanel
Multi-slicer PCB Depanel Introduction:
This multi-slicer PCB depanel is mainly used in LED industry, which can separate 2-20 PCBs at the same time.
It designed 2 blade sets for FR4 boards, and 3 blade sets for Aluminum boards.
The machine is suitable for very high volume production, and it can connect PCB loader for automatic loading to save labor cost for clients.
Multi-slicer PCB Depanel Features:
1. It can cut many boards with multiple sets of knives work at the same time.
2. The knife flywheel is adjustable as a whole from 0 to 5mm
3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7. Thickness range of PCB: 0.8-3.5mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9. The machine adopts multiple blade to separate boards with simple operation and high efficiency.
10. Feeding track and flat belt is adjustable.
Multi-slicer PCB Depanel Specification:
| Max cutting length | No limit |
| Min cutting length | 100mm |
| Max panel width | 220mm |
| Custom cutting width | 320mm |
| Min PCB width | 8mm |
| PCB thickness | 0.8-3.5mm |
| Feeding speed | 0-500mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110-220V |
| Dimension | 2160*570*1050mm |
Multi-slicer PCB Depanel Details:
1. Large LCD Display
2. Regular Wiring
3. Durable ESD Feeding Conveyor Belt
|
