| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

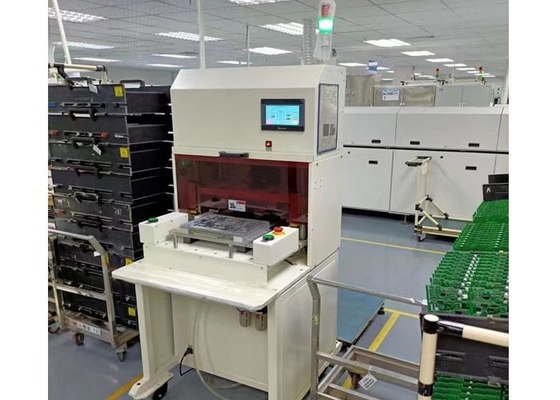

PLC Control Automatic PCB Punch Die Tooling PCB Punching Machine
Die Tooling PCB Punching Machine Features:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3. Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould.
4. Double switch start operation.
5. Safety pressure setting function,limit alarm.Automatic counting,limit down time.
Die Tooling PCB Punching Machine Function:
This PCB punching machine can be used for the PCB depaneling in different industries. It helps to avoid the micro-cracks that may have been caused in the PCBs by the manual process. It offers an easy to set up punching dies with the changeable die tooling. The machine also features a convenient loading and unloading of PCBs with its easy operation. The air cylinder driven machine features a safe protection system and can be suitable for different applications.
Die Tooling PCB Punching Machine Specifications:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
Die Tooling PCB Punching Machine Application Cases:
|
