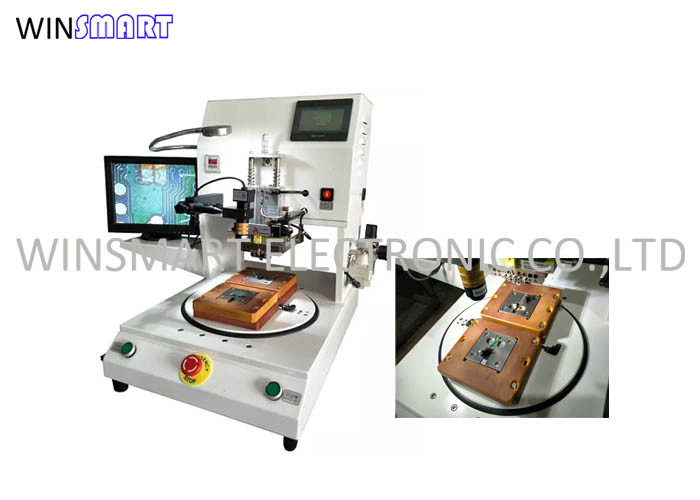

Rotable Dual Fixtures Single Thermode Hot Bar Soldering Machine
Hot Bar Soldering Machine Classification:
Desktop rotary table pulse hot press, separated desktop pulse hot press, separated desktop double head pulse hot press, vertical rotary table pulse hot press.
Hot Bar Soldering Machine Advantages:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Hot Bar Soldering Machine Introduction:
Usually, we can't use SMT + reflow furnace for welding devices. Originally, we can use constant temperature soldering iron for manual welding, but manual welding has some defects, such as inconsistent operation proficiency, uneven operation, even false welding or damaged products. The pulse hot press is different from the constant temperature soldering iron. The pulse hot press can reach the required temperature at the moment of power on. Once there is no voltage at both ends of the pressure head, the air cooling can quickly reach the room temperature, and the pressure head is flat, so the welded products have the same appearance, stable yield and simple operation.
Hot Bar Soldering Machine Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4. Soldering time can be programmable and is triggered by temperature.
5. CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.
6. Touch operation interface, program password protection
7. Real time temperature curve display
Hot Bar Soldering Machine Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
| Temperature range | 50℃ to 500℃ |
| Temperature accuracy | ±1°C |
| Bond time | 0-12 seconds |
| Bond air pressure | 0.4-0.6MPa |
| Pressure accuracy | ±0.05MPa |
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTS32 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Rotable Dual Fixtures Single Thermode Hot Bar Soldering Machine
Hot Bar Soldering Machine Classification:
Desktop rotary table pulse hot press, separated desktop pulse hot press, separated desktop double head pulse hot press, vertical rotary table pulse hot press.
Hot Bar Soldering Machine Advantages:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Hot Bar Soldering Machine Introduction:
Usually, we can't use SMT + reflow furnace for welding devices. Originally, we can use constant temperature soldering iron for manual welding, but manual welding has some defects, such as inconsistent operation proficiency, uneven operation, even false welding or damaged products. The pulse hot press is different from the constant temperature soldering iron. The pulse hot press can reach the required temperature at the moment of power on. Once there is no voltage at both ends of the pressure head, the air cooling can quickly reach the room temperature, and the pressure head is flat, so the welded products have the same appearance, stable yield and simple operation.
Hot Bar Soldering Machine Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4. Soldering time can be programmable and is triggered by temperature.
5. CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.
6. Touch operation interface, program password protection
7. Real time temperature curve display
Hot Bar Soldering Machine Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
| Temperature range | 50℃ to 500℃ |
| Temperature accuracy | ±1°C |
| Bond time | 0-12 seconds |
| Bond air pressure | 0.4-0.6MPa |
| Pressure accuracy | ±0.05MPa |
