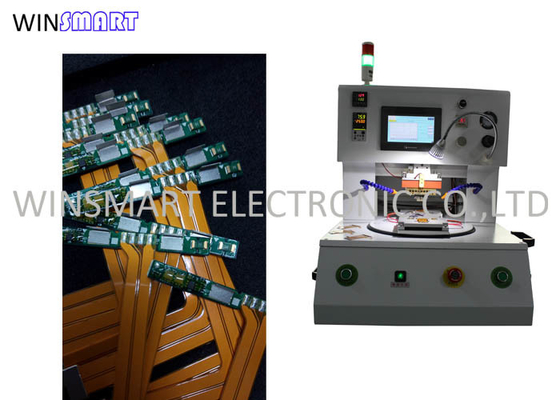

Max 80mm Molybdenum Alloy Thermode Hot Bar Soldering Machine
Hot Bar Soldering Machine Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
3. Soldering time can be programmable and is triggered by temperature.
4. With a unique thermode head, the machine ensures the average pressure.
5. The machine has the vacuum function opional CCD system that makes it easier for positioning.
6. The machine has 3 phase temperature profits(pre-heating, soldering and cooling).
Hot Bar Soldering Machine Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Hot Bar Soldering Machine Classification:
In order to meet the needs of different production, in addition to the simple welding function, the hot bar soldering has also added auxiliary equipment such as alignment camera system. According to the number of fixtures:
(1) Single table
This type of equipment is small in shape and occupies less space. The price is relatively low, and it only needs to be placed on a small platform. However, the equipment can only be installed with one jig, so the production efficiency is low and it is suitable for small batch production. This type of equipment can also be paired with the camera system as required.
(2) Double tables
This type of equipment can be installed with two jigs. During production, one or two clamps can be selected according to production needs. When two clamps are selected for production, one clamp is in the welding machine. The operator can clamp the product on another jig to prepare for the next welding, thereby reducing the waiting time and greatly improving the production efficiency.
Hot Bar Soldering Machine Application:
Hot bar soldering machine is used in the following commodity production technologies: USB cable welding, welding of flexible cable FFC and flexible circuit board FPC or hard circuit board PCB, welding between TCP and circuit board PCB or flexible circuit board FPC, welding between flexible circuit board FPC and circuit board PCB, etc.
|
|
