| Brand Name: | Winsmart |
| Model Number: | SMTAD10 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

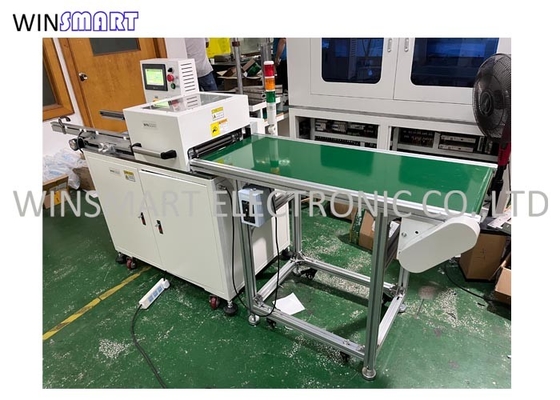

1200mm LED Automated PCB Depaneling Machine LED PCB Separator
Automated PCB Depaneling Description:
This automated PCB depaneling is one of this kind of machines, which could improve 10 times productivity. For FR4 boards, it is enough to use upper 2 blades sets and lower 2 blade sets. For MCPCB boards, need to use upper 3 blade sets and lower 3 blade sets. Let us name A, B, C for the 3 blade sets, first blade set A cutting 30% of web, second blade set B cutting 30% of web, ad the last blade set cutting 40% of web to finish the whole cutting. After cutting, PCB edge is clean without burrs, product quality improves a lot. The machine is good helper for the LED manufacturers.
Automated PCB Depaneling Features:
1. Automatic feeding track with sensor. When the sensor get the PCB signal, blade works to cut the boards.
2. Both FR4 and MCPCB T5, T8 boards are suitable for the machine.
3. Automatic flat conveyor for PCB collection.
4. No noise, less dust, smooth cutting edge.
5. Suitable for very high volume production.
Automated PCB Depaneling Specification:
| Max cutting length | No limit |
| Min cutting length | 100mm |
| Max panel width | 220mm |
| Custom cutting width | 320mm |
| Min PCB width | 8mm |
| PCB thickness | 0.8-3.5mm |
| Feeding speed | 0-500mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110-220V |
| Dimension | 2160*570*1050mm |
Automated PCB Depaneling Cases:
It is mainly used in LED industry, which can separate 2-20 PCBs at the same time. The machine is suitable for very high volume production, and it can connect PCB loader for automatic loading to save labor cost for clients.
|
