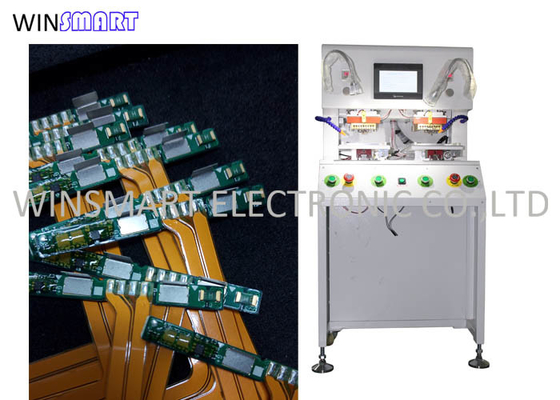

Temperature Profile Hot Bar Soldering Equipment For FPC to PCB Welding
Hot Bar Soldering Equipment Classifications:
In order to meet the needs of different production, in addition to the simple welding function, the pulse heat bonding has also added auxiliary equipment such as alignment camera system. According to the number of fixtures:
(1) Single table
This type of equipment is small in shape and occupies less space. The price is relatively low, and it only needs to be placed on a small platform. However, the equipment can only be installed with one jig, so the production efficiency is low and it is suitable for small batch production. This type of equipment can also be paired with the camera system as required.
(2) Double tables
This type of equipment can be installed with two jigs. During production, one or two clamps can be selected according to production needs. When two clamps are selected for production, one clamp is in the welding machine. The operator can clamp the product on another jig to prepare for the next welding, thereby reducing the waiting time and greatly improving the production efficiency.
Hot Bar Soldering Equipment Features:
1. Using pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s
2. Single working platform, rotary working platform, left and right mobile platform and other diversified working modes
3. Multi stage temperature rise control
4. Real time temperature curve display
5. Silicone Tape indexing mechanism
6. Large capacity program pre storage
7. Touch operation interface, program password protection
Hot Bar Soldering Equipment Specification:
| Machine size | 750×650×1300mm |
| Working area | Max 150*200mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start buttom |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Hot Bar Soldering Equipment Application:
1. Mobile phone manufacturer
2. Touch screen manufacturer
3. Computer
4. Printer, etc.
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTS22 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Temperature Profile Hot Bar Soldering Equipment For FPC to PCB Welding
Hot Bar Soldering Equipment Classifications:
In order to meet the needs of different production, in addition to the simple welding function, the pulse heat bonding has also added auxiliary equipment such as alignment camera system. According to the number of fixtures:
(1) Single table
This type of equipment is small in shape and occupies less space. The price is relatively low, and it only needs to be placed on a small platform. However, the equipment can only be installed with one jig, so the production efficiency is low and it is suitable for small batch production. This type of equipment can also be paired with the camera system as required.
(2) Double tables
This type of equipment can be installed with two jigs. During production, one or two clamps can be selected according to production needs. When two clamps are selected for production, one clamp is in the welding machine. The operator can clamp the product on another jig to prepare for the next welding, thereby reducing the waiting time and greatly improving the production efficiency.
Hot Bar Soldering Equipment Features:
1. Using pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s
2. Single working platform, rotary working platform, left and right mobile platform and other diversified working modes
3. Multi stage temperature rise control
4. Real time temperature curve display
5. Silicone Tape indexing mechanism
6. Large capacity program pre storage
7. Touch operation interface, program password protection
Hot Bar Soldering Equipment Specification:
| Machine size | 750×650×1300mm |
| Working area | Max 150*200mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start buttom |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Hot Bar Soldering Equipment Application:
1. Mobile phone manufacturer
2. Touch screen manufacturer
3. Computer
4. Printer, etc.
