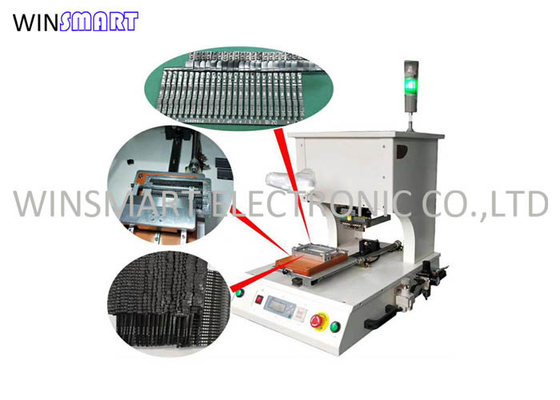

PLC Control And Molybdenum Alloy Thermode Auto Hotbar Machine
Auto Hotbar Machine Overview:
Hot press is also called bonding machine. According to the different media of hot pressing, it can be divided into soldering, ACF bonding machine (opposite conductive tape), ACP (opposite conductive glue), TBF (hot melt adhesive film). It is applicable to the connection of FPC (flexible circuit board), HSC (Zebra paper), tab and LCD and PCB. As the pitch of PCB or FPC in consumer electronic products tends to be smaller, the traditional soldering process has been difficult to meet the requirements of extremely fine hot pressing, so the ACF process has been gradually applied by mobile phone designers.
Auto Hotbar Machine Advantages:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Auto Hotbar Machine Specification:
| Machine size | 500×500×600mm |
| Working area | Max 200*170mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
| Thermode material | Molybdenum alloy |
| Thermode size | Max 60mm long |
| Origin | China |
| Fixing mode | Customized fixture |
| Application | FFC to PCB, FPC to PCB, Wires to PCB |
| Warranty | 12 months |
Auto Hotbar Machine Applications in Mobible Phones Manufacturing:
It is used on the internal parts of mobile phones. Everyone is familiar with touch screen smart phones. Mobile phones are now basically necessary for people, and some people even have more than one mobile phone. You may not know that the mobile phone you use every day will also use the hot bar soldering. Because the hot bar soldering machine sounds like a big machine, you feel that the operation goal is also some huge parts. However, small mobile phones often use the pulse heat bonding. The pulse heat welding machine is usually used for the function module of the mobile phone screen or when the camera FPC is welded to the PCB.
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTS01 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
PLC Control And Molybdenum Alloy Thermode Auto Hotbar Machine
Auto Hotbar Machine Overview:
Hot press is also called bonding machine. According to the different media of hot pressing, it can be divided into soldering, ACF bonding machine (opposite conductive tape), ACP (opposite conductive glue), TBF (hot melt adhesive film). It is applicable to the connection of FPC (flexible circuit board), HSC (Zebra paper), tab and LCD and PCB. As the pitch of PCB or FPC in consumer electronic products tends to be smaller, the traditional soldering process has been difficult to meet the requirements of extremely fine hot pressing, so the ACF process has been gradually applied by mobile phone designers.
Auto Hotbar Machine Advantages:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Auto Hotbar Machine Specification:
| Machine size | 500×500×600mm |
| Working area | Max 200*170mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
| Thermode material | Molybdenum alloy |
| Thermode size | Max 60mm long |
| Origin | China |
| Fixing mode | Customized fixture |
| Application | FFC to PCB, FPC to PCB, Wires to PCB |
| Warranty | 12 months |
Auto Hotbar Machine Applications in Mobible Phones Manufacturing:
It is used on the internal parts of mobile phones. Everyone is familiar with touch screen smart phones. Mobile phones are now basically necessary for people, and some people even have more than one mobile phone. You may not know that the mobile phone you use every day will also use the hot bar soldering. Because the hot bar soldering machine sounds like a big machine, you feel that the operation goal is also some huge parts. However, small mobile phones often use the pulse heat bonding. The pulse heat welding machine is usually used for the function module of the mobile phone screen or when the camera FPC is welded to the PCB.
