| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |

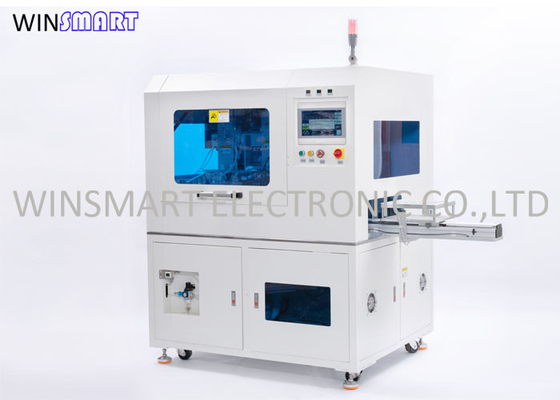

Customized Universal Inline PCB Separator Machine For V Cut Tab Boards
300mm/s Customized Universal Inline PCB Separator Equipment for V-cut And Tab Boards
Inline PCB Separator Equipment Development:
With the development of economy and the expansion of industrial strength, the traditional production mode is not suitable for the existing economic mode, so full automatic equipment is constantly introduced to meet the daily production needs. Among many equipment, inline PCB separator is a typical representative in the electronic industry.
Inline PCB Separator Equipment Specification:
| Model Number | SMTID3 |
| Machine Size | 1500(L) x 1010(W) x 2200(H)mm |
| Voltage | 220V/50Hz |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20000-60000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.02mm |
| Knife | 0.8-3.0 routing bits, right rotation & saw blade |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Optional |
| Machine Power Rate | Total 5KW, includes 3KW vacuum cleaner |
| Machine Condition | 100% new |
| Warranty | 1 year |
| After-sale Service | 24 hours online support, oversea installation and training is available |
| Programming | Online, visual |
| Automatic Calibration Function | Mark point automatic calibration |
| Editing Function | Straight line, point, arc, circle |
| Axis Position Accuracy | 0.01mm |
| Cutting Precision | ±0.05mm |
| Barcode Scanning | Optional |
| Counting Function | Yes |
Inline PCB Separator Equipment Features:
This machine is an on-line full-automatic equipment, which can be connected to PCB loader machine. It adopts the high-speed rotation of the saw blade/milling cutter and automatic cutting according to the programs.
The equipment is designed on-line, which can automatically locate, cut and vacuum, with high production efficiency and stable quality.
It comes with win 10 operation system and friendly visual programming software for precise cutting to improve cutting effect. Cutting edge is very smooth wihout burr and dust.
Inline PCB Separator Equipment Working Introduction:
This equipment is full automatic without operators, it comes with adjustable feeding conveyor and flat ESD belt conveyor/cutomized output fixture for separated boards collection.
It improves production time saving manufacturing cost for clients.
|
