| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

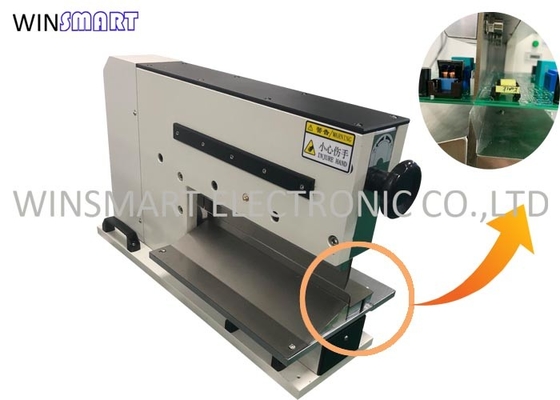

200mm 600mm Linear Blade PCB Board Cutter Machine Foot Pedal Control
200-600mm Linear Blade Foot Pedal Control PCB Board Cutting Machine
PCB Board Cutting Machine Advantages:
The PCB board cutting machine adopts the latest pneumatic electric lightweight design to complete the plate cutting stroke without shear stress at one time, especially suitable for cutting precision SMD or thin plate; The bow and micro cracks generated when there is no circular knife type plate cutting. The wedge-shaped tool is used for linear plate cutting to minimize the shear stress, so that the sensitive SMD components and even capacitors can not be affected, and the potential quality risk of the product can be minimized.
PCB Board Cutting Machine Features:
1. It separates all kinds of V-cut PCB boards with smooth edge, includes FR1, FR4, CEM1, CEM3 and Aluminum Boards.
2. It allows max 70mm components mounted on the board.
3. This machine is also suitable for copper lamp board, cob board and other V-cut boards.
4. Less than 200u strain cutting stress to protect components.
5. Linear blades could be customizeable.
6. PCB holding fixtures are available for easier and faster cutting.
PCB Board Cutting Machine Working Principle:
The machine is driven by cylinder which is environmental and friendly.
Operator insert the boards into the blades by V-scoring lines, and he/she won't misfeed the board.
Then operator press foot pedal, 2 linear blades cuts the PCB board like a scissor to lower cutting stress.
PCB Board Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | According to blade length |
| Max Cutting Length | 200-600mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
| Machine Condition | 100% new |
| Cutting Speed | Depends on operation |
| Control System | Foot pedal |
| Cutting Stress | Less than 200 u strain |
| Cutting Edge | Smooth without burr |
| Customized Fixture | Optional |
| Warranty | 1 year |
| Package | Wooden case |
PCB Board Cutting Machine Blades:
|
| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
200mm 600mm Linear Blade PCB Board Cutter Machine Foot Pedal Control
200-600mm Linear Blade Foot Pedal Control PCB Board Cutting Machine
PCB Board Cutting Machine Advantages:
The PCB board cutting machine adopts the latest pneumatic electric lightweight design to complete the plate cutting stroke without shear stress at one time, especially suitable for cutting precision SMD or thin plate; The bow and micro cracks generated when there is no circular knife type plate cutting. The wedge-shaped tool is used for linear plate cutting to minimize the shear stress, so that the sensitive SMD components and even capacitors can not be affected, and the potential quality risk of the product can be minimized.
PCB Board Cutting Machine Features:
1. It separates all kinds of V-cut PCB boards with smooth edge, includes FR1, FR4, CEM1, CEM3 and Aluminum Boards.
2. It allows max 70mm components mounted on the board.
3. This machine is also suitable for copper lamp board, cob board and other V-cut boards.
4. Less than 200u strain cutting stress to protect components.
5. Linear blades could be customizeable.
6. PCB holding fixtures are available for easier and faster cutting.
PCB Board Cutting Machine Working Principle:
The machine is driven by cylinder which is environmental and friendly.
Operator insert the boards into the blades by V-scoring lines, and he/she won't misfeed the board.
Then operator press foot pedal, 2 linear blades cuts the PCB board like a scissor to lower cutting stress.
PCB Board Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | According to blade length |
| Max Cutting Length | 200-600mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
| Machine Condition | 100% new |
| Cutting Speed | Depends on operation |
| Control System | Foot pedal |
| Cutting Stress | Less than 200 u strain |
| Cutting Edge | Smooth without burr |
| Customized Fixture | Optional |
| Warranty | 1 year |
| Package | Wooden case |
PCB Board Cutting Machine Blades:
