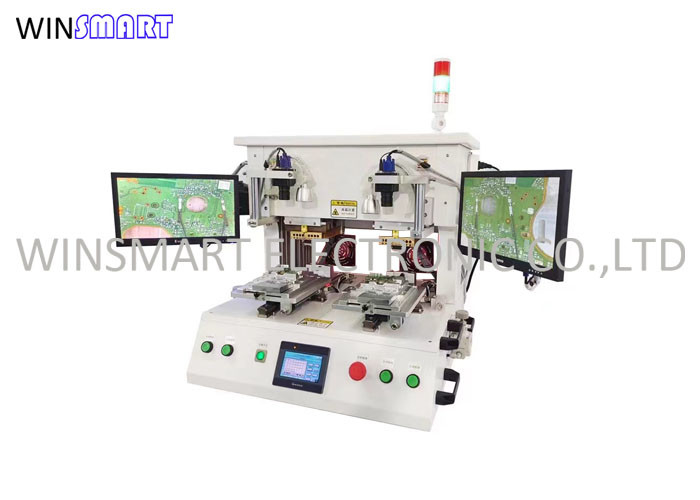

0.1mm Pitch Hot Bar Soldering Equipment Dual Separated Working Table
Hot Bar Soldering Equipment Description:
Hot bar soldering equipment is used in the following commodity production technologies: USB cable welding, welding of flexible cable FFC and flexible circuit board FPC or hard circuit board PCB, welding between TCP and circuit board PCB or flexible circuit board FPC, welding between flexible circuit board FPC and circuit board PCB, etc.
Hot Bar Soldering Equipment Advantages:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Hot Bar Soldering Equipment Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
3. Soldering time can be programmable and is triggered by temperature.
4. With a unique thermode head, the machine ensures the average pressure.
5. The machine has the vacuum function opional CCD system that makes it easier for positioning.
6. The machine has 3 phase temperature profits(pre-heating, soldering and cooling).
Hot Bar Soldering Equipment Specification:
| Machine size | 750×540×500mm |
| Working area | Standard 150*150mm |
| Machine weight | 96Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 100*3mm |
| Welding precision | pitch 0.1mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Hot Bar Soldering Equipment Application:
Hot bar soldering machine is used in the following commodity production technologies: USB cable welding, welding of flexible cable FFC and flexible circuit board FPC or hard circuit board PCB, welding between TCP and circuit board PCB or flexible circuit board FPC, welding between flexible circuit board FPC and circuit board PCB, etc.
Hot Bar Soldering Equipment Maintenance:
1. Check the whole machine every 6 months (according to the requirements of assembly and test run).
2. Wear and corrosion on the surface of large piston and loader piston, especially the section of sealing ring at the highest position.
3. Whether all parts of the hot pressing plate are consistent when heating up (whether the internal heat transfer oil channel is blocked or not).
4. All hydraulic system size seal ring wear and all valve core, spring and valve wear.
5. Wear condition of gear, pulley and guide rail.
6. Wear and seal of internal parts of each oil pump; Horizontal position and foundation condition of frame.
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTS10 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
0.1mm Pitch Hot Bar Soldering Equipment Dual Separated Working Table
Hot Bar Soldering Equipment Description:
Hot bar soldering equipment is used in the following commodity production technologies: USB cable welding, welding of flexible cable FFC and flexible circuit board FPC or hard circuit board PCB, welding between TCP and circuit board PCB or flexible circuit board FPC, welding between flexible circuit board FPC and circuit board PCB, etc.
Hot Bar Soldering Equipment Advantages:
1. Very high working efficiency, suitable for high volume production.
2. Max 10mm long thermode head for larger applications.
3. Molybdenum alloy thermode heads have uniform heating and high welding quality.
4. Customized fixtures are available for high quality soldering of different applications.
5. Imported PLC system ensures stable running.
Hot Bar Soldering Equipment Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
3. Soldering time can be programmable and is triggered by temperature.
4. With a unique thermode head, the machine ensures the average pressure.
5. The machine has the vacuum function opional CCD system that makes it easier for positioning.
6. The machine has 3 phase temperature profits(pre-heating, soldering and cooling).
Hot Bar Soldering Equipment Specification:
| Machine size | 750×540×500mm |
| Working area | Standard 150*150mm |
| Machine weight | 96Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 100*3mm |
| Welding precision | pitch 0.1mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Hot Bar Soldering Equipment Application:
Hot bar soldering machine is used in the following commodity production technologies: USB cable welding, welding of flexible cable FFC and flexible circuit board FPC or hard circuit board PCB, welding between TCP and circuit board PCB or flexible circuit board FPC, welding between flexible circuit board FPC and circuit board PCB, etc.
Hot Bar Soldering Equipment Maintenance:
1. Check the whole machine every 6 months (according to the requirements of assembly and test run).
2. Wear and corrosion on the surface of large piston and loader piston, especially the section of sealing ring at the highest position.
3. Whether all parts of the hot pressing plate are consistent when heating up (whether the internal heat transfer oil channel is blocked or not).
4. All hydraulic system size seal ring wear and all valve core, spring and valve wear.
5. Wear condition of gear, pulley and guide rail.
6. Wear and seal of internal parts of each oil pump; Horizontal position and foundation condition of frame.
