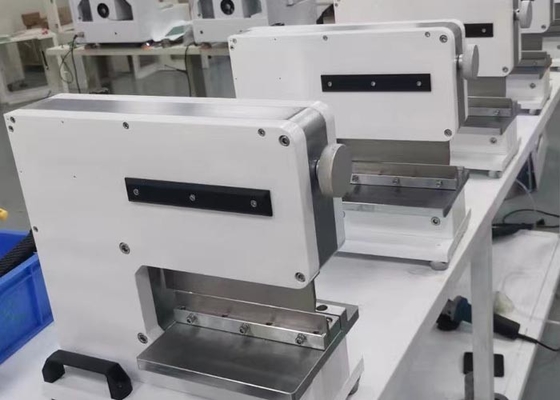

200mm Pneumatic Circuit Board Cutting Machine No Power Required
No Power Required Economic 200mm Pneumatic PCB Cutting Machine PCB Depanel
PCB Cutting Machine Function:
PCB cutting machine is an important process in the production process of mass electronic assembly. In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called connecting board or PCB panel. This large connecting board or panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
PCB Cutting Machine Features:
1. Suitable for all v-cut boards, includes FR1, FR4, CEM, Aluminum PCBs.
2. Cylinder driven.
3. Foot switch control for speed adjustable,
4. Low cutting stress to protect components.
5. No power required.
PCB Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Blade Type | Linear |
| Blade Quantity | 2pcs |
| Blade Material | High speed steel |
| Testing Report | Provided |
| Power | 110/220V |
| Machine Weight | 130kgs |
V-Cut PCB Depaneling Machine Details:
1. Two linear blade design. Lower cutting stress, meet strict requirements for precise boards less than 300ustrain.
2. Max 2mm blade clearance, ensure that operator fingers cannnot insert for safe production. And it is easy to adjust blade clearance by the rotation knob.
3. Noise and dust free. Conter function shows cutting times to remind checking blade sharpness. Blade can be re-sharpened 2-3 times.
4. Upper and lower blade clearance is adjustable according to V-cut depth, and operator will not misfeed the boards.
PCB Cutting Machine Advantages:
Using PCB cutting machine in SMT assembly line can improve operation and production efficiency. The effect of traditional manual folding operation is not good. It is usually used in PCBA processing plants. This also adds two elements to operation and production. One is guarantee, the other is quality.
|
| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
200mm Pneumatic Circuit Board Cutting Machine No Power Required
No Power Required Economic 200mm Pneumatic PCB Cutting Machine PCB Depanel
PCB Cutting Machine Function:
PCB cutting machine is an important process in the production process of mass electronic assembly. In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called connecting board or PCB panel. This large connecting board or panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
PCB Cutting Machine Features:
1. Suitable for all v-cut boards, includes FR1, FR4, CEM, Aluminum PCBs.
2. Cylinder driven.
3. Foot switch control for speed adjustable,
4. Low cutting stress to protect components.
5. No power required.
PCB Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Blade Type | Linear |
| Blade Quantity | 2pcs |
| Blade Material | High speed steel |
| Testing Report | Provided |
| Power | 110/220V |
| Machine Weight | 130kgs |
V-Cut PCB Depaneling Machine Details:
1. Two linear blade design. Lower cutting stress, meet strict requirements for precise boards less than 300ustrain.
2. Max 2mm blade clearance, ensure that operator fingers cannnot insert for safe production. And it is easy to adjust blade clearance by the rotation knob.
3. Noise and dust free. Conter function shows cutting times to remind checking blade sharpness. Blade can be re-sharpened 2-3 times.
4. Upper and lower blade clearance is adjustable according to V-cut depth, and operator will not misfeed the boards.
PCB Cutting Machine Advantages:
Using PCB cutting machine in SMT assembly line can improve operation and production efficiency. The effect of traditional manual folding operation is not good. It is usually used in PCBA processing plants. This also adds two elements to operation and production. One is guarantee, the other is quality.
