| Brand Name: | Winsmart |
| Model Number: | SMTDR411 |
| MOQ: | 1 Unit |
| Price: | USD10000/Unit |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, Western Union |

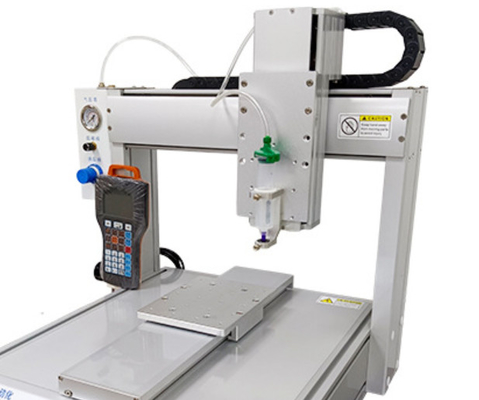

3 Axis Robotic SMD Red Glue Dispensing Machine 400x400mm Table
Red Glue Dispensing Machine Usage:
Mobile phone screen TP hot melt adhesive dispensing, flat TP dispensing, PCB dot solder paste, HD HDMI line solder paste, semiconductor package, PCB board part fixing and protection, LCD glass package and paste, mobile phone board dispensing, Button products, dispensing, speaker packaging and dispensing, battery box dispensing, automotive parts coating, metal parts packaging, quantitative liquid filling, chip bonding and so on.
Red Glue Dispensing Machine Dispensing Materials:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw glue, etc.
Red Glue Dispensing Machine Features:
1. Newly improved design of the glue machine line, the whole machine power dose not exceed 15W
2.Two-piece air source input structure. After the air pressure comes out from the air compressor, the gas contains water and impurities, which causes the solenoid valve to get stuck and loses sensitivity. After adding two-piece, the problem can be improved obviously.
3. The optional precision pressure regulating valve is specially designed to adjust the amount of dispensing glue. Compared with similar products, this regulating valve has more stable air pressure and more accurate air outlet size.
4. The optional Stainless steel plastic barrel, the barrel body is welded by seamless welding technology, and the barrel cover is made of aluminum, which is light and convenient. The barrel has a diameter of 70mm and a height of 110mm. The thickness of stainless steel is 5mm and can withstand pressure above 10kg.
5. Pneumatic accessories: the original Taiwan Air TAC solenoid valve, cylinder; and the slider driven by the cylinder has special treatment to ensure never fall off.
6. Machined brass turntable with hole in the middle and reverse suction function with an accuracy of 0.01mm
Red Glue Dispensing Machine Specification:
| Model | SMTDR411 |
|
Working area X/Y/Z(mm) |
400*400*100 |
|
Max load Y-axis/Z-axis |
10kg/5kg |
|
Moving speed X&Y/Z(mm/sec) |
0.1-800/500 |
| Relolution | 0.01mm/Axis |
| Repeatability | ±0.01mm/Axis |
| Program capacity | 1000 groups, 4000 points per file(Min 100Group,4000pionts/group) |
| Data storage type | PLC |
| Display | Teching box |
| Motor system | micro-stepping motor |
| Programe mode | Teching box |
| I/O ports for extension | 8 Inputs/8 Outputs |
| Power | AC110V/220V 300W |
| Working tem. | 5-50℃ |
| Working Humidity | 20-90% no condensation |
|
Dimension (W*D*H)mm |
640x 640x620 |
| Weight(Kg) | 90 |
|
|
