| Brand Name: | Winsmart |
| Model Number: | SMTDR411 |
| MOQ: | 1 Unit |
| Price: | USD10000/Unit |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, Western Union |

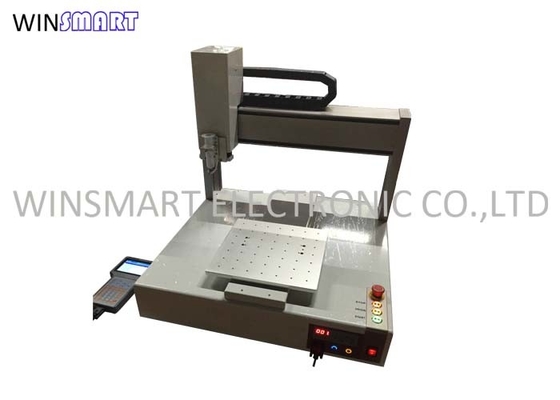

SMT Solder Paste Dispenser Bechtop Type SMT Dispensing Machine
SMT Solder Paste Dispenser Introduction:
The glue dispenser is widely used in mobile phone screen TP hot melt adhesive dispensing, flat TP dispensing, PCB dot solder paste, HD HDMI line solder paste, semiconductor package, PCB board part fixing and protection, LCD glass package and paste, mobile phone board dispensing, button products, dispensing, speaker packaging and dispensing, battery box dispensing, automotive parts coating, metal parts packaging, quantitative liquid filling, chip bonding and so on.
SMT Solder Paste Dispenser Features:
This SMT solder paste dispenser has newly improved designed of the glue dispensing machine line, with customized and universal fixtures for good effect dispensing result. he optional precision pressure regulating valve is specially designed to adjust the amount of dispensing glue. Compared with similar products, this regulating valve has more stable air pressure and more accurate air outlet size. Also, it uses solid frame and original aiwan Air TAC solenoid valve, cylinder; and the slider driven by the cylinder has special treatment to ensure long life time.
The most important is that machine cost is economic.
SMT Solder Paste Dispenser Parameters:
| Model | SMTDR411 |
|
Working area X/Y/Z(mm) |
400*400*100 |
|
Max load Y-axis/Z-axis |
10kg/5kg |
|
Moving speed X&Y/Z(mm/sec) |
0.1-800/500 |
| Relolution | 0.01mm/Axis |
| Repeatability | ±0.01mm/Axis |
| Program capacity | 1000 groups, 4000 points per file(Min 100Group,4000pionts/group) |
| Data storage type | PLC |
| Display | Teching box |
| Motor system | micro-stepping motor |
| Programe mode | Teching box |
| I/O ports for extension | 8 Inputs/8 Outputs |
| Power | AC110V/220V 300W |
| Working tem. | 5-50℃ |
| Working Humidity | 20-90% no condensation |
|
Dimension (W*D*H)mm |
640x 640x620 |
| Weight(Kg) | 90 |
|
|
