| Brand Name: | Winsmart |
| Model Number: | SMTDR411 |
| MOQ: | 1 Unit |
| Price: | USD10000/Unit |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, Western Union |

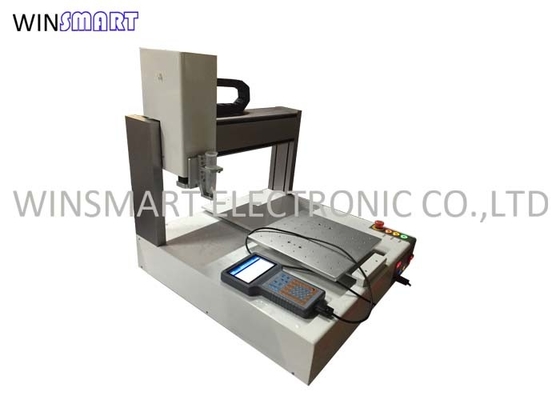

PLC Control SMT Adhesive Dispensing Equipment For SMT Assembly
SMT Adhesive Dispensing Equipment Introduction:
Adhesive dispensing equipment is used for the controlled dispensation of adhesives and/or silicones. These devices include manual dispensing caulk guns, hot melt glue guns, and an assortment of mix / meter and dispensing systems. Our dispensing equipments guarantee accurate processes and excellent results .
SMT Adhesive Dispensing Equipment Working Principle:
The control glue is used to encapsulate products and workpieces. The working principle of the glue filling machine is mainly to use compressed air to control the on-off switch of the glue valve, and use the pump to transfer the glue from the glue storage barrel to the switch mixing part.
SMT Adhesive Dispensing Equipment Glues:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw glue, etc.
SMT Adhesive Dispensing Equipment Features:
1. Desktop type, can be placed on the production line.
2. DIY mode, free matches of axis and heads, head number range is 1~12.
3. Optional Full English marked machine body, to be international application.
4. Multi-axis design with high rigidity aluminum alloy.
5.The glue automatic feeding, safe and silence.
6. Main components of the machine are high quality, ensure the reliability and accuracy.
SMT Adhesive Dispensing Equipment Specification:
| Model | SMTDR411 |
|
Working area X/Y/Z(mm) |
400*400*100 |
|
Max load Y-axis/Z-axis |
10kg/5kg |
|
Moving speed X&Y/Z(mm/sec) |
0.1-800/500 |
| Relolution | 0.01mm/Axis |
| Repeatability | ±0.01mm/Axis |
| Program capacity | 1000 groups, 4000 points per file(Min 100Group,4000pionts/group) |
| Data storage type | PLC |
| Display | Teching box |
| Motor system | micro-stepping motor |
| Programe mode | Teching box |
| I/O ports for extension | 8 Inputs/8 Outputs |
| Power | AC110V/220V 300W |
| Working tem. | 5-50℃ |
| Working Humidity | 20-90% no condensation |
|
Dimension (W*D*H)mm |
640x 640x620 |
| Weight(Kg) | 90 |
|
|
