| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

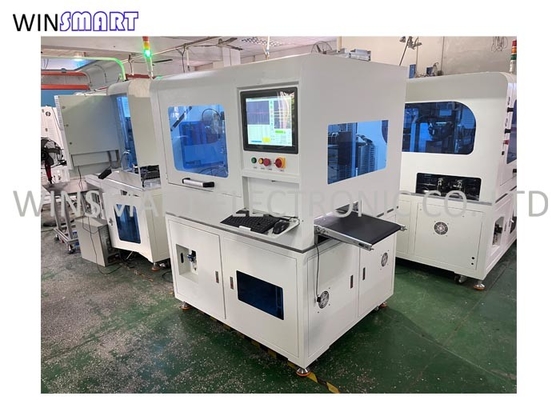

Multi Function PCB Depaneling Separator, 2 Spindles for V-cut & Tab Boards
PCB Depaneling Separator Description:
The Multi function PCB Depaneling Separator with 2 Spindles is a specialized machine designed for the separation of PCBs, specifically V-cut and tab boards. It features two spindles to accommodate different types of PCBs, providing efficient and precise depaneling capabilities. This machine is versatile and suitable for a wide range of PCB manufacturing processes for both V-cut boards and milling bridge boards.
PCB Depaneling Separator Functions:
The primary function of the multi function PCB Depaneling Separator with 2 Spindles is to separate PCBs, specifically V-cut and tab boards. It performs the following functions:
V-cut Separation: The machine utilizes one of the spindles to perform V-cut separation of PCBs. It follows the predefined V-cut lines on the boards and separates them accurately without causing stress or damage.
Tab Board Separation: The machine employs the other spindle to separate tab boards. It is designed to remove the tabs connecting individual boards while maintaining the integrity of each PCB.
Customizability: The machine allows for customization based on specific PCB designs and requirements. It can be easily adjusted to accommodate different board sizes, shapes, and thicknesses.
PCB Depaneling Separator Features:
Dual Spindles: The inclusion of two spindles enables the machine to handle both V-cut and tab boards, offering versatility and efficiency in PCB depaneling processes.
Precise Separation: The machine ensures precise separation of PCBs, maintaining the integrity of the boards and minimizing stress or damage to components.
Adjustable parameters: The machine offers adjustable parameters such as cutting speed, spindle pressure, and feed rate, allowing for optimal cutting performance on different PCB materials and thicknesses.
Customizable cutting paths: The machine can be programmed to follow specific cutting paths based on the PCB design requirements, accommodating various shapes and sizes.
Conveyor system: The machine includes a conveyor system to facilitate the smooth movement of PCBs during the separation process, enhancing efficiency and productivity.
PCB Depaneling Separator Specification:
| Item | SMTID3 |
| Working area | 250x200mm, 0-80mm(Z) |
| CCD | 540 |
| Spindle | China Brand |
| Screw rod, guide rail, module | China Brand |
| Servo Motor | Panasonic |
| Electrostatic eliminator | ADK-801ADK-801 |
| PC | Industrial Grade |
| Motion control card | PI9074 |
| monitor | 17 inch |
| Operating system | Windows 10 |
| Spindle speed | 40000RPM |
| XYZ drive speed | XY.800mm/s, Z.300mm/s |
| Cutting speed | 0-80mm/s |
| Cutting accuracy | ±0.05mm |
| Overall power | 5KW |
| Working platform | Rotating tray can cut in two directions |
| Spindle cooling system | Air cooling |
| Vacuum cleaner power | 3.5kw 380V,3-Phase(optional top and bottom vacuum cleaning) |
| Air pressure | 0.5-0.7MPa |
| Noise control | <80 dB |
| Safety device | Safety door and sensor |
| Operation mode | Inline |
| PCB Loading | Adjustable feeding conveyor |
| Automatic fault detection and maintenance mode | Self diagnosis function, real-time error information display and intuitively query the status of each IO port for troubleshooting |
| Technical support and training | Provide equipment operation, programming, hardware maintenance and training services |
| Vision system | CCD visual positioning correction system |
| Adjustable height | 50-70mm |
| Warning light | Tricolor lamp |
| Working range protective cover | Blind protection mode of hexahedral door |
| Dimension | 1000(L)x1010(W)x1860(H)mm |
| Weight | About 1000kgs |
PCB Depaneling Separator Working Principe:
The Multi function PCB Depaneling Separator with 2 Spindles operates based on the specific type of PCB being processed:
V-cut Separation: the machine uses one of the spindles to follow the predefined V-cut lines on the PCB. The spindle applies controlled pressure and moves along the V-cut path, ensuring accurate separation without causing stress or damage.
Tab Board Separation: the machine employs the other spindle to remove the tabs connecting individual boards. The spindle positions itself at the designated tab areas and applies controlled force, separating the tabs while maintaining the integrity of each PCB.
PCB Depaneling Separator Configuration List:
1. Inline PCB depaneling separator x 1 unit
2. Vacuum cleaner x 1 unit
3. Saw blade x 5 pcs
4. Routing bits x 50 pcs
5. Instruction manual x 1 pc
6. Operation video and setup video
|
