| Brand Name: | Winsmart |
| Model Number: | SMTAD10 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

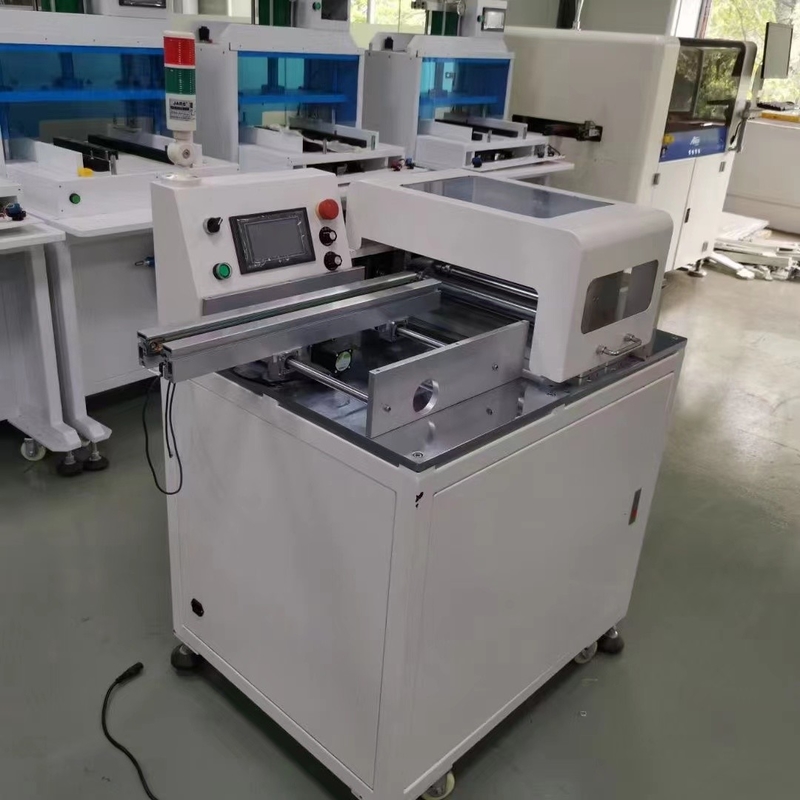

Automated Multi-blade LED PCB Depaneler For High Volume Production
LED PCB Depaneler Introduction:
1. The Automated Multi-blade LED Board Depaneler is a specialized machine designed for high-volume production of LED boards.
2. It is equipped with multiple blades(2-17 groups) and automated mechanisms to efficiently and accurately separate LED boards from larger panels.
3. This machine is specifically developed to meet the demands of high-speed production lines, providing a reliable and efficient solution for LED board depaneling.
LED PCB Depaneler Features:
This PCB depaneler can separate 2-17 v-cuts at the same time, improving working production. And it is easy to replace different spacers for different PCBs. The machine can work with PCB loader to realize automated process, and can also manual feed the boards and manual unloading separated PCBs. Maximized productivity and minimizes production cycle times, it can cut 17 PCBs in a few seconds, saving manufacturing cost for manufacturers. It can work for both FR4 and MCPCB boards.
Friendly PLC touch screen panel for easy operation and control.
LED PCB Depaneler Advantages:
High Volume Production: The machine is specifically designed for high-volume production of LED boards, offering increased throughput and productivity.
Efficiency and Automation: The automated operation of the machine reduces the reliance on manual labor, minimizing human errors and increasing overall efficiency.
Precision and Quality: The machine's precision cutting techniques result in clean and accurate separation of LED boards, ensuring high-quality end products.
Time and Cost Savings: The high-speed performance and multi-blade configuration of the machine contribute to reduced production cycle times and lower labor costs, making it a cost-effective solution for high-volume production.
Scalability: The machine is suitable for scaling up production as demand increases. It can handle large volumes of LED boards with consistent quality and efficiency.
LED PCB Depaneler Specification:
| Model | SMTAD10 |
| Max cutting length | No limit |
| Min cutting length | 100mm |
| Max panel width | 220mm(standard) |
| Custom cutting width | 320mm |
| Min PCB width | 8mm |
| PCB thickness | 0.8-3.5mm |
| Feeding speed | 0-500mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110-220V |
| PCB material | FR4, MCPCB |
| Blade material | High speed S/S |
| Blade life time | 100000 cutting times |
| Warranty | 12 months |
| CE approval | Yes |
| Testing report | Yes |
| PCB feeding | Manual or automatic |
| PCB unloading | Manual |
| Weight | 150kgs |
| Dimension | 2160*570*1050mm |
LED PCB Depaneler Application:
The Automated Multi-blade LED Board Depaneler is widely used in industries involved in LED board manufacturing and assembly.
Its applications include:
LED Lighting Manufacturing: The machine is ideal for separating LED boards used in various lighting applications, including residential, commercial, and industrial lighting fixtures.
Automotive Lighting: LED boards used in automotive lighting systems can be efficiently depaneled using this machine, ensuring precise separation and high-quality products.
Display Panels: The machine is suitable for separating LED boards used in display panels, such as those found in televisions, monitors, and digital signage.
Electronics Manufacturing: LED boards are used in various electronic devices. This machine can be employed in the production of consumer electronics, telecommunications equipment, and other electronic products incorporating LED technology.
|
