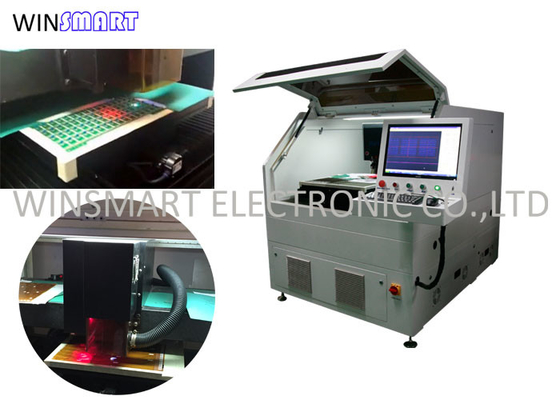

Automated PCB Depaneling Non-contact 15W UV Laser Cut Circuit Board

Automated PCB Depaneling Introduction:

Automated PCB depaneling using a non-contact 15W UV laser is a cutting-edge technology used for separating individual circuit boards from a larger panel. This automated process utilizes a high-power UV laser to precisely cut through the PCB material without physical contact. It ensures clean and accurate depaneling while minimizing the risk of damage to the circuitry or components. This method is suitable for various types of PCBs and offers several benefits over traditional mechanical depaneling methods.

Automated PCB Depaneling Features:

1. Non-contact Cutting: The UV laser depaneling process does not require physical contact with the PCB, eliminating the risk of mechanical stress or damage to the circuitry, components, or solder joints. This non-contact cutting method ensures clean and precise separation.

2. High-Power UV Laser: The machine employs a high-power 15W UV laser that delivers focused and intense UV light. This laser beam is capable of efficiently cutting through various PCB materials, including FR-4, flex, and rigid-flex boards.

3. Precision and Accuracy: The UV laser cutting technology offers exceptional precision and accuracy, allowing for intricate depaneling of PCBs with complex designs, tight spacing, and fine traces. It ensures clean cuts with minimal heat-affected zones.

4. Minimal Heat Generation: The UV laser generates minimal heat during the cutting process, reducing the risk of thermal damage to the PCB and its components. This is particularly advantageous for sensitive electronic devices and components.

5. High Throughput and Automation: The automated nature of the UV laser depaneling machine enables high throughput and efficiency in the PCB manufacturing process. It can handle multiple PCB panels consecutively without requiring manual intervention.

6. Software Control and Programming: The machine is typically equipped with user-friendly software that allows for easy programming and control of the depaneling process. Operators can define cutting paths, adjust parameters, and optimize settings based on specific PCB designs and requirements.

Automated PCB Depaneling Specification:

Laser Cut Circuit Board Advantages:

1. No mechanical stress

2. Lower tooling costs

3. Higher quality of cuts

4. No consumables

5. Design versatility-simple software changes enable application changes

6. Works with any surface-Teflon, ceramic, aluminum, brass and copper

7. Fiducial recognition achieves precise, clean cuts

Laser Cut Circuit Board Applications:

Automated PCB depaneling using a non-contact UV laser finds applications in various industries and PCB manufacturing processes, including:

1. Electronics Manufacturing: The technology is widely used in the production of electronic devices, such as consumer electronics, telecommunications equipment, automotive electronics, and industrial control systems.

2. PCB Assembly: After the PCB assembly process, individual circuit boards need to be separated from a larger panel. The UV laser depaneling machine offers a precise and efficient method for this separation, ensuring intact components and clean edges.

3. High-Density PCBs: The UV laser cutting technology is particularly suitable for high-density PCBs with intricate designs, fine traces, and tight spacing between components. It enables precise depaneling without compromising the integrity of the PCB.

4. Prototype Development: During the prototyping stage, PCBs often need to be quickly and accurately separated for testing and validation purposes. The UV laser depaneling machine offers a rapid and reliable solution for separating prototype boards.

5. Custom PCB Manufacturing: The non-contact UV laser depaneling method is ideal for custom PCB manufacturing, where flexibility and precision are crucial. It allows for efficient depaneling of PCBs with unique shapes, sizes, and cutouts.
