Max 100,000 RPM High Speed Dual Table Inline PCB Router Machine Precision ±0.05mm
High Speed Inline PCB Router Description:
It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting.
This inline router system, with dual separated spindles and dual tables for high volume production.
High Speed Inline PCB Router Feature:
1. Cutting path full closed loop, real-time error tracking, feedback, compensation.
2. Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
3. Dual spindles cutting 2 boards at the same time.
4. Automatically identify barcodes and retrieve cutting programs.
5. Has tool detection function and auto change function.
High Speed Inline PCB Router Specification:

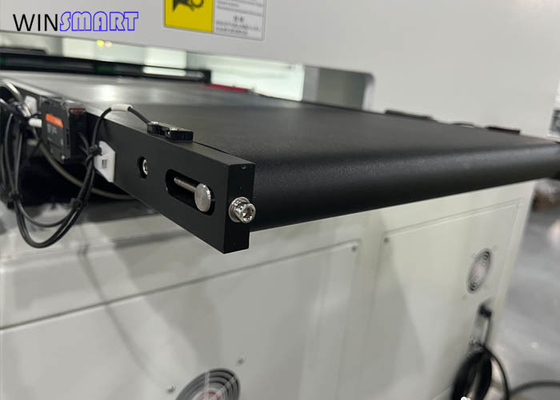

| Model Number | SMTIR500 |
| Machine Size | Approx 2250(L)x1300(W)x1750(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 300x450mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left -> Right or Right -> Left |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Auto |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum, 40-60 nozzles |
| Cutting Spindle | 100000rpm/min |
| Cooling Type | Self cooling |
| Automatic Tool Change | Yes |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.05mm |
| Routing Bit | 0.8-3.0 Diameter |
| Repeat Accuracy | ±0.01mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Tool Detection | Yes |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm2 |
| Power Supply | AC 380V, 50/60Hz, 3KW |
High Speed Inline PCB Router Structure:
This inline PCB Router Machine is an advanced depaneling solution designed for high-speed, high-precision, and automated PCB separation. It is widely used in mass production environments such as automotive electronics, consumer electronics, LED lighting, telecommunications, and medical devices.

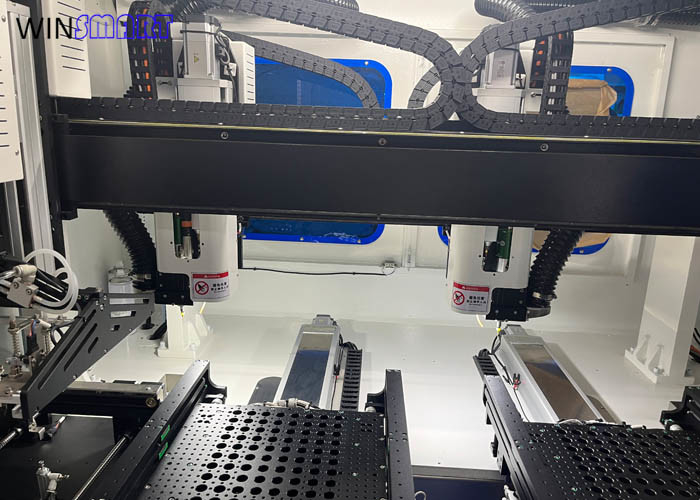

Two independent worktables allow simultaneous loading and unloading of PCBs, and it ensures minimal downtime and higher throughput.
Two independent spindles allow for parallel processing of different PCB sections.
High Speed Inline PCB Router Details:
1. The inline PCB router machine can work with a tray collection machine as below design for very high volume production, saving manufacturer's labor cost.

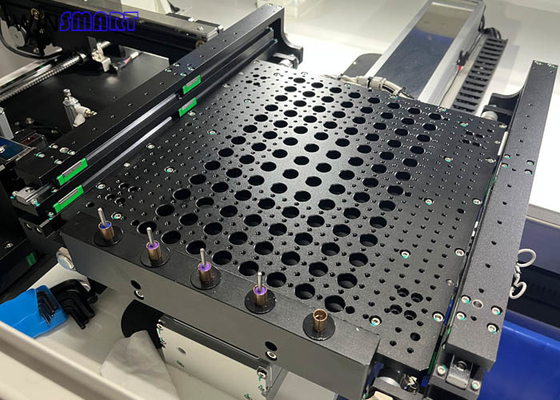

2. Auto tool change function, allows 5 bits per each table, total 10 bits can be stored.
3. Spindle structure, it adopts SycoTec high speed spindle 4033 with max 100000rpm and ESD brush. It also has tool broken detection.
Reasons why choose us:
1. Stable: the main components of equipment are imported. The equipment weight over 700kg. Master the most mature production technology in the automation industry.
2. Professional: we have many patented technologies in the automation industry.
3. Innovation: we always committed to developing equipment that is more labor-saving, highly automated, and has better universality.
4. Fast: response to customer demands within 1 hour, and provide a solution within 2 hours.
|
| Brand Name: | Winsmart |
| Model Number: | SMTIRX |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Max 100,000 RPM High Speed Dual Table Inline PCB Router Machine Precision ±0.05mm
High Speed Inline PCB Router Description:
It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting.
This inline router system, with dual separated spindles and dual tables for high volume production.
High Speed Inline PCB Router Feature:
1. Cutting path full closed loop, real-time error tracking, feedback, compensation.
2. Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
3. Dual spindles cutting 2 boards at the same time.
4. Automatically identify barcodes and retrieve cutting programs.
5. Has tool detection function and auto change function.
High Speed Inline PCB Router Specification:
| Model Number | SMTIR500 |
| Machine Size | Approx 2250(L)x1300(W)x1750(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 300x450mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left -> Right or Right -> Left |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Auto |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum, 40-60 nozzles |
| Cutting Spindle | 100000rpm/min |
| Cooling Type | Self cooling |
| Automatic Tool Change | Yes |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.05mm |
| Routing Bit | 0.8-3.0 Diameter |
| Repeat Accuracy | ±0.01mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Tool Detection | Yes |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm2 |
| Power Supply | AC 380V, 50/60Hz, 3KW |
High Speed Inline PCB Router Structure:
This inline PCB Router Machine is an advanced depaneling solution designed for high-speed, high-precision, and automated PCB separation. It is widely used in mass production environments such as automotive electronics, consumer electronics, LED lighting, telecommunications, and medical devices.
Two independent worktables allow simultaneous loading and unloading of PCBs, and it ensures minimal downtime and higher throughput.
Two independent spindles allow for parallel processing of different PCB sections.
High Speed Inline PCB Router Details:
1. The inline PCB router machine can work with a tray collection machine as below design for very high volume production, saving manufacturer's labor cost.
2. Auto tool change function, allows 5 bits per each table, total 10 bits can be stored.
3. Spindle structure, it adopts SycoTec high speed spindle 4033 with max 100000rpm and ESD brush. It also has tool broken detection.
Reasons why choose us:
1. Stable: the main components of equipment are imported. The equipment weight over 700kg. Master the most mature production technology in the automation industry.
2. Professional: we have many patented technologies in the automation industry.
3. Innovation: we always committed to developing equipment that is more labor-saving, highly automated, and has better universality.
4. Fast: response to customer demands within 1 hour, and provide a solution within 2 hours.
