| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

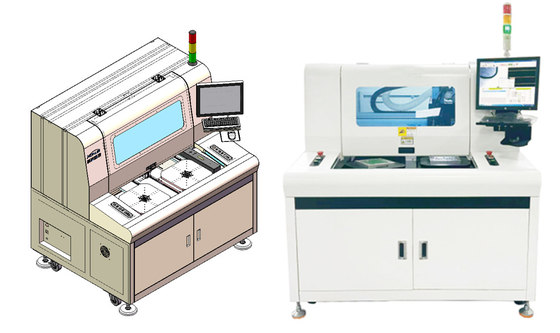

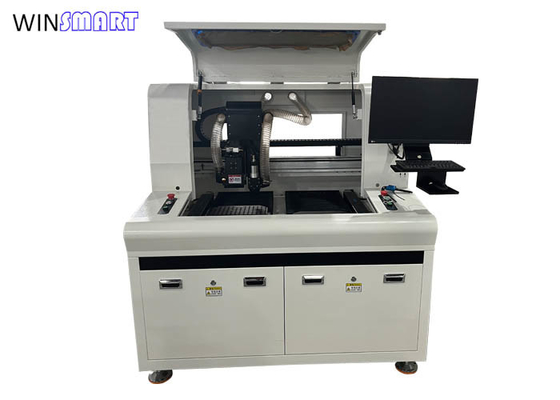

Dual Spindle Dual Table Universal V-Cut PCB Separator and PCB Router Machine
Dual Spindle Universal PCB Separator Overview:
This machine is designed for the panel with both V-cut and milling bridges connection. It comes with dual tables and dual spindles, one spindle for V-cut boards, another spindle for tab boards.
It is widely used in electronics manufacturing, automotive, medical devices, LED lighting, and telecommunications.
It prevents cracks, delamination, and micro-damage, making it ideal for high-reliability electronics.
Dual Spindle Universal PCB Separator Features:
1. Dual tables allow for simultaneous cutting.
2. Dual spindles process multiple PCBs at once, doubling efficiency.
3. Reduces cycle time by processing two PCBs simultaneously.
4. Ideal for high-volume manufacturing environments.
5. Minimizes operator intervention, reducing labor costs.
6. CCD vision alignment system ensures precise cutting.
7. Applies minimal force, preventing cracks and delamination.
8. Works with FR4, aluminum-backed, ceramic, rigid-flex, and multilayer PCBs.
9. Supports complex PCB shapes and irregular designs.
10. Vacuum dust collection system removes debris, ensuring a clean work environment.
11. Minimizes waste and rework, improving yield rates.
Dual Spindle Universal PCB Separator Specification:
| Model | SMTID3 |
| Working area | 300x300mm, 0-80mm(Z) |
| Tables | Dual |
| Spindle | Dual, SycoTec 4025HY for routing |
| Screw rod, guide rail, module | China Brand |
| Servo Motor | Panasonic |
| Electrostatic eliminator | ADK-801ADK-801 |
| PC | Industrial Grade |
| Motion control card | PI9074 |
| monitor | 17 inch |
| Operating system | Windows 10 |
| Spindle speed | Max 60000RPM |
| XYZ drive speed | XY.800mm/s, Z.300mm/s |
| Cutting speed | 0-100mm/s |
| Cutting accuracy | ±0.05mm |
| Overall power | 5KW |
| Working platform | Rotating tray can cut in two directions |
| Spindle cooling system | Air cooling |
| Vacuum cleaner power | 3kw 380V,3-Phase(top vacuum cleaning) |
| Air pressure | 0.5-0.7MPa |
| Noise control | <80 dB |
| Safety device | Safety door and sensor |
| Programming | Can import dxf file for easier programming |
| PCB loading and unloading | Manual |
| Technical support and training | Provide equipment operation, programming, hardware maintenance videos and on-site training services |
| Vision system | CCD visual positioning correction system |
| Warning light | Tricolor lamp |
| Working range protective cover | Blind protection mode of hexahedral door |
| Dimension | 1500(L)x1450(W)x1600(H)mm |
| Weight | About 950kgs |
Dual Spindle Universal PCB Separator Details:
This universal PCB separator is designed for the panel with both V-cut and milling bridge, it also work for only V-cut boards or only routed boards.
Dual Spindle Universal PCB Separator Main Part Introduction:
1. The brushless motor drives the saw blade, with suction and ion air to reduce dust adsorption during the cutting process. Servo controlled Z-axis lifting, accurate control of PCB height.
2. High speed SycoTec spindle, fast cutting, equipped with vacuum cleaner and cutter breakage detection to prevent further cutting and scrap after knife breakage. Servo controlled Z-axis lifting, accurate control of PCB height.
3. Customized aluminum alloy fixture, oxidation treatment, anti-static, ensuring cutting accuracy.
Universal PCB Separator Shipment Configuration List:
1)PCB separator with 2 spindles x 1 unit
2)Vacuum cleaner x 1 unit
3)Saw blade x 5 pc, routing bits x 10 pc
4)Instruction manual x 1 pc
5)Operation video and setup video
|
|
