| Brand Name: | Winsmart |
| Model Number: | SMTID3 offline |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Dust Free Multi-function Pre-scored and Routed PCB Separator PCB Router Machine
Multi-function PCB Router Machine Overview:
This multi-function Pre-Scored and Routed PCB router is a versatile depaneling machine designed to handle both V-scored PCBs and routed PCBs efficiently. It is widely used in electronics manufacturing, LED lighting, automotive, and medical industries where high precision and minimal stress are required during PCB separation.
Multi-function PCB Router Machine Features:
1. Supports both V-scored and routed PCB separation in one machine.
2. Ensures clean, burr-free separation with minimal stress.
3. Prevents cracks, delamination, and component damage.
4. Works with FR4, aluminum, ceramic, flexible, and rigid-flex PCBs.
5. Reduces manual handling, improving production efficiency.
6. Customizable settings for different PCB thicknesses and materials.
7. CCD camera ensures accurate cutting and alignment.
8. Works with FR4, aluminum-backed, ceramic, rigid-flex, and multilayer PCBs.
9. Protective enclosures and emergency stop buttons for operator safety.
10. Easy programming and operation with pre-set cutting paths.
Multi-function PCB Router Machine Specification:
| Model | SMTID3 offline |
| Working area | 300x300mm, could be customized |
| Tables | Dual |
| Spindle | Dual, SycoTec 4025HY for routing |
| Screw rod, guide rail, module | China Brand |
| Servo Motor | Panasonic |
| Electrostatic eliminator | ADK-801ADK-801 |
| PC | Industrial Grade |
| Motion control card | PI9074 |
| monitor | 17 inch |
| Operating system | Windows 10 |
| Spindle speed | Max 60000RPM |
| XYZ drive speed | XY.800mm/s, Z.300mm/s |
| Cutting speed | 0-100mm/s |
| Cutting accuracy | ±0.05mm |
| Overall power | 5KW, Machine 2KW, Vacuum cleaner 3KW |
| Working platform | Rotating tray can cut in two directions |
| Spindle cooling system | Air cooling |
| Vacuum cleaner power | 3kw 380V,3-Phase(top vacuum cleaning) |
| Air pressure | 0.5-0.7MPa |
| Noise control | <80 dB |
| Safety device | Safety door and sensor |
| Programming | Can import dxf file for easier programming |
| PCB loading and unloading | Manual |
| Technical support and training | Provide equipment operation, programming, hardware maintenance videos and on-site training services |
| Vision system | CCD visual positioning correction system |
| Warning light | Tricolor lamp |
| Working range protective cover | Blind protection mode of hexahedral door |
| Dimension | 1500(L)x1450(W)x1600(H)mm |
| Weight | About 950kgs |
Multi-function PCB Router Machine Details:

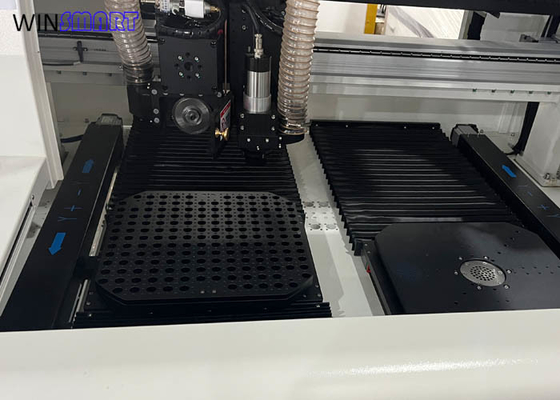

This universal PCB separator is designed for the panel with both V-cut and milling bridge, it also work for only V-cut boards or only routed boards.
The machine has brushless motor which drives the saw blade, with suction and ion air to reduce dust adsorption during the cutting process.
We use high speed SycoTec spindle, fast cutting, equipped with vacuum cleaner and cutter breakage detection to prevent further cutting and scrap after knife breakage.
And we use servo controlled Z-axis lifting and customized aluminum alloy jig to ensure cutting accuracy.
Multi-function PCB Router Machine Applications:
1. Consumer Electronics
|
|
